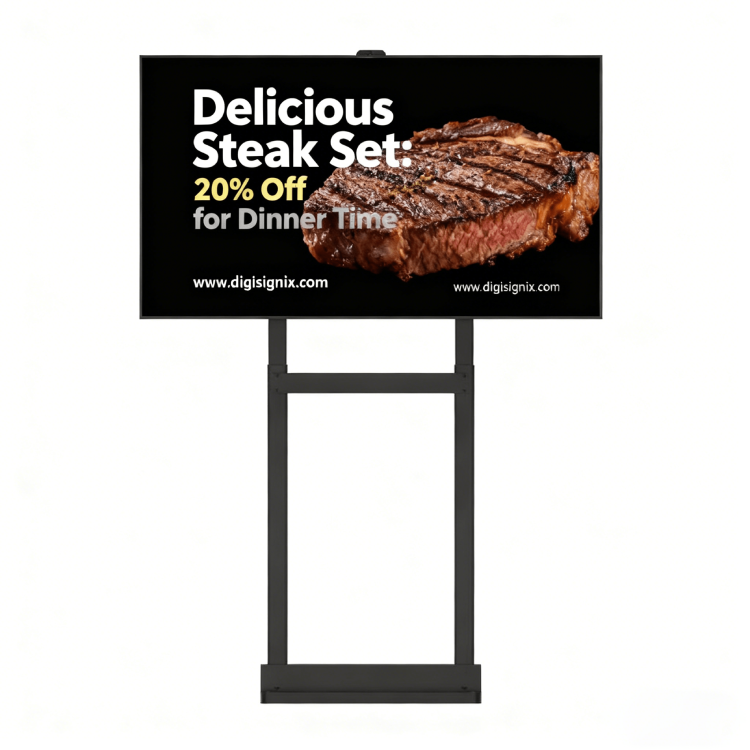

Floor Standing Window-Facing Digital Displays – Landscape

32″ / 43″ / 49″ / 55″ / 65″ / 75″ / 86″ Sunlight-Readable High-Brightness LCD Monitor

  • Super Slim Bezel for a sleek, modern display design.
  • Versatile System Options: Android (RK3288 / RK3399), Windows (i3 / i5 / i7 customizable), or Linux. 2500–4000 nits
  • High Brightness for clear, sunlight-readable performance.
  • Industrial-Grade High-TNI 105°C LCD with wide operating temperature range and non-blackening technology.
  • Lightweight Aluminum Housing for enhanced durability and easy installation.
  • Automatic & Manual Brightness Control with integrated light sensor.
  • Low-Noise Smart Cooling System with built-in silent fans.
  • Applications: Shopping malls, events, banks, restaurants, retail chains, and more.

Specifications



Display

 Screen size:  43″  49″  55″  65″
 Display proportion:  16:9  16:9  16:9  16:9
 Pixel Pitch:  0.4903*0.4903  0.27963*0.27963  0.63*0.63  0.372*0.372
 Resolution(Pixel):  1920*1080  1920*1080  1920*1080/4K  1920*1080/4K
 Display color:  16.7 M  16.7 M  16.7 M  16.7 M
 Response time: 6ms  6ms  6ms  8ms
 Luminance:  2500~4000cd/m2 2500~4000cd/m2 2500~4000cd/m2 2500~4000cd/m2
 Contrast ratio:  1200:1  1200:1  1400:1  4000:1
 View angel (L/R/U/D):  89/89/89/89  89/89/89/89  89/89/89/89  89/89/89/89
 Backlit:  LED  LED  LED  LED
 Media Formats  Video: RM, RMVB, MKV, MOV, M4v, MPG1/2/4, TS, FLV, PMP, AVI, VOB, DAT, MP4, (1080P decoding)
 Audio: MP3, WMA
 Picture: JPEG, BMP, GIF, PNG
 Power supply  AC Input: 110-240V
 Appearance  Color option: Black, bespoke color is available
 Housing material: Aluminum frame
 I/O interface: HDMI, USB, etc
 Installation: Height Adjustable floor mount

Android Operating System( Option 1)

CPU RK3399, Dual-core Cortex-A72 + Quad core Cortex-A53, MAX 1.8GHz
GPU ARM Mali-T864
RAM 4GB
Internal memory 64GB EMMC
Operation system Android 7.1/ Android 8.1/ Android 9/ Android 10

Android Operating System( Option 2)

CPU RK3288, Quad-core Cortex-A17, MAX 1.8GHz
GPU ARM Mali-T764
RAM 2GB/4GB
Internal memory 16GB/32GB/64 EMMC
Operation system Android 7.1/ Android 8.1/ Android 9/ Android 10

Android Free Remote Content Management Software Video/image splicing to multiple screens by software, no need for extra controller/matrix/HDMI splitter

Editing Playlist, timing, playback
Edit Multi Zones Play different contents
Support live stream, URL, Youtube Video, PDF, WORD, TXT, etc
Remote Management by mobile, PC thru wifi/LAN network
Support 4K high-resolution videos, Max uploading video 2GB, Max uploading image 20MB
Support Simple USB sticker plug-play looping images/videos
Cloud base software is supported
Free of charge

Windows/Linux  Operating system( Option 3)

CPU i3/i5/i7 4th Gen/5th Gen/6th Gen,  can be customized
RAM 4GB RAM/ 8GB RAM/ 16GB RAM
SSD 128GB SSD/256GB SSD/512GB SSD/1TB SSD
Operating system Windows 10, Support Linux O.S also
Interface 4 * USB ports, 1 * HDMI output, 1* Lan Port, etc.

HDMI input/Display port monitor ( Option 4)

HDMI input 1 * HDMI input, can be customized with 2 HDMI input
DP input (Display Port input) Optional
VGA input Optional
Standby Mode Without Singal, auto standby mode
HDMI Audio Support
